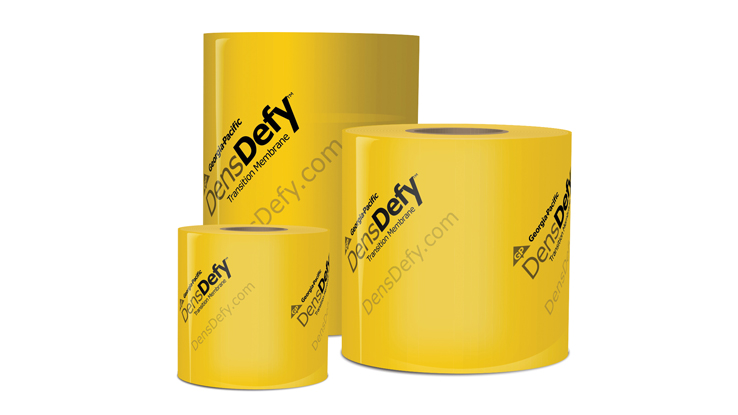

DensDefy® Transition Membrane

  • 25-mil composite membrane with butyl adhesive and HDPP facer ensures superior impermeability.
  • Bonds to most surfaces, such as glass mat gypsum sheathing, poured concrete, masonry, steel and wood-based substrates.
  • Ideal for drift or control joints, vertical expansion joints, and transitions between dissimilar materials.
  • Primerless application allows for faster installation time.
  • May be exposed to normal weather conditions for up to 12-months.
  • Conforms to requirements of AAMA 711.

Product Details

DensDefy® Transition Membrane is an impermeable self-adhered sheet designed for use as a rough opening flashing and transition membrane for connecting dissimilar materials to maintain air and moisture barrier continuity. DensDefy® Transition Membrane bonds to most surfaces such as glass mat gypsum sheathing, poured concrete, masonry, steel, and wood based substrates.

FEATURES AND BENEFITS

  • High-Performance Compatibility: Our advanced butyl has been rigorously tested to ensure seamless integration with the DensElement® Barrier System, providing unparalleled protection and reliability.
  • Time Effectiveness: The efficiency of primerless application, significantly reducing installation time and streamlining your construction process.
  • Consistent Precision: Engineered to a uniform thickness, our product eliminates excessive build-up, ensuring clean, sturdy, and durable results every time.
  • Protection: The rugged HDPP film acts as a guardian, shielding the high-performance butyl membrane from incidental damage throughout construction.

Product Specifications

PERFORMANCE ATTRIBUTES

Tensile Strength
(AAMA 711 Section 5.1)
MD
CMD
1350 psi
1138 psi
Transfer Free Time< 1 hour (at room temperature and 50% relative humidity)
Water Vapor Transmission0.05 perms (ASTM E96 Method A)
0.07 perms (ASTM E96 Method B)
Elongation442%
Nail Sealability(AAMA 771 Section 5.2)
Pass
ASTM D1970

PHYSICAL ATTRIBUTES

Weight10.5–11.5 (lbs)
Length 75′ (22 m)
Width6″ (15 cm)
ColorsGold HDPP facer with Black DensDefy™ logo
VOC Content<30 (g/L)
Shelf Life1 year in properly stored, unopened original packaging
Resistance to Peel(AAMA 711 Section 5.9)
Pass
ASTM D3330 Method F

PERFORMANCE ATTRIBUTES

Tensile Strength
(AAMA 711 Section 5.1)
MD
CMD
1350 psi
1138 psi
Transfer Free Time< 1 hour (at room temperature and 50% relative humidity)
Water Vapor Transmission0.05 perms (ASTM E96 Method A)
0.07 perms (ASTM E96 Method B)
Elongation442%
Nail Sealability(AAMA 771 Section 5.2)
Pass
ASTM D1970

PHYSICAL ATTRIBUTES

Weight10.5–11.5 (lbs)
Length 75′ (22 m)
Width9″ (22 cm)
ColorsGold HDPP facer with Black DensDefy™ logo
VOC Content<30 (g/L)
Shelf Life1 year in properly stored, unopened original packaging
Resistance to Peel(AAMA 711 Section 5.9)
Pass
ASTM D3330 Method F

PERFORMANCE ATTRIBUTES

Tensile Strength
(AAMA 711 Section 5.1)
MD
CMD
1350 psi
1138 psi
Transfer Free Time< 1 hour (at room temperature and 50% relative humidity)
Water Vapor Transmission0.05 perms (ASTM E96 Method A)
0.07 perms (ASTM E96 Method B)
Elongation442%
Nail Sealability(AAMA 771 Section 5.2)
Pass
ASTM D1970

PHYSICAL ATTRIBUTES

Weight10.5–11.5 (lbs)
Length 75′ (22 m)
Width12″ (30 cm)
ColorsGold HDPP facer with Black DensDefy™ logo
VOC Content<30 (g/L)
Shelf Life1 year in properly stored, unopened original packaging
Resistance to Peel(AAMA 711 Section 5.9)
Pass
ASTM D3330 Method F

Resources

DensDefy® Transition Membrane Product Data Sheet
DensDefy® Transition Membrane Limited Warranty - Canada (English)
DensDefy® Transition Membrane Limited Warranty - Canada (Français)
DensDefy® Transition Membrane Limited Warranty - USA (Español)
DensDefy® Transition Membrane Limited Warranty - USA (English)
DensDefy® Transition Membrane Limited Warranty - USA (Français)
DensDefy® Transition Membrane Exemption Letter
DensDefy® Transition Membrane Jobsite Repair Guide
