Product Details

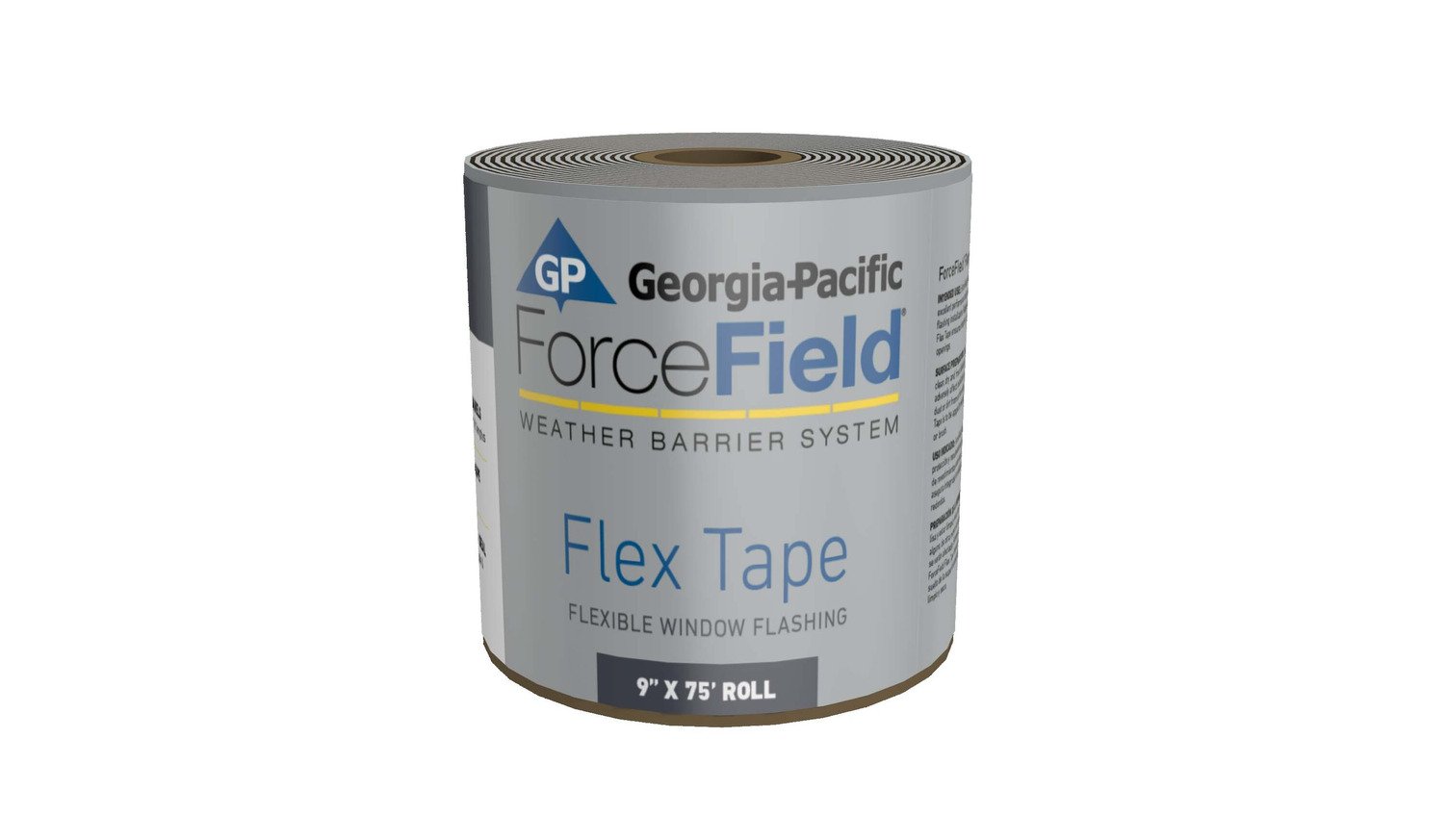

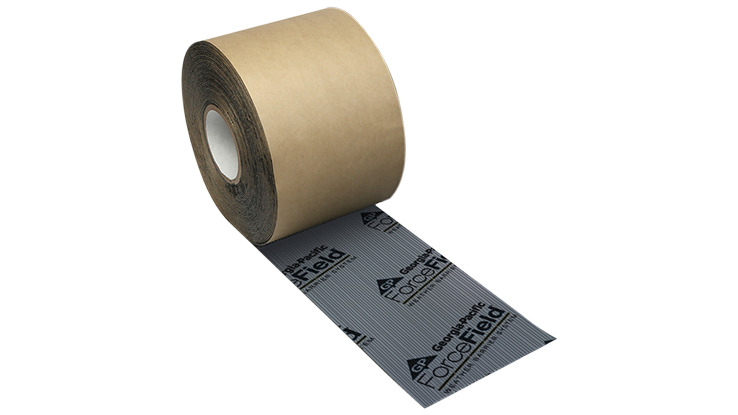

A conformable, peel-and-stick flashing tape. It wraps easily around windows and other curved and rough openings. It is ideal for use on curved openings on walls and windowsill pan flashing.
PRODUCT SIZE AND PACKAGING
| Roll Sizes | 6″ wide x 75′ long 9″ wide x 75′ long |
| Packaging | 2 rolls per case |
Product Specifications
TECHNICAL DATA
| Test | Tested Value / Typical Metric1 | Test Method |
| Thickness | 0.003 inch (0.08mm) | PSTC-113 |
| Peel Adhesion2 to Stainless Steel | 45 oz/in (12.5N / 25 mm) | PSTC-101 |
| Peel Adhesion2 to Polyethylene | 16 oz/in (4.5 N / 25 mm) | PSTC-101 |
| Shear Adhesion | ≥ 24 hrs @ 2.2psi (15.2 kPa) | PSTC-107 |
| Tensile Strength | 20 lb/in (90.4 N / 25mm) | PSTC-131 |
| Elongation | 130% | PSTC-131 |
| Nail Sealability | 20 to 180°F (-6.7 to 82°C) |
1 Typical values are not intended to be used for specification development
2 20 minute dwell
PHYSICAL ATTRIBUTES
| Thickness | Minimum 0.03″ |
| Material | Two-ply oriented high-density film mated to a premium butyl rubber adhesive and release sheet |
| Adhesive | Butyl Rubber |
| Exposure Limit | 180 days to normal weather conditions |
